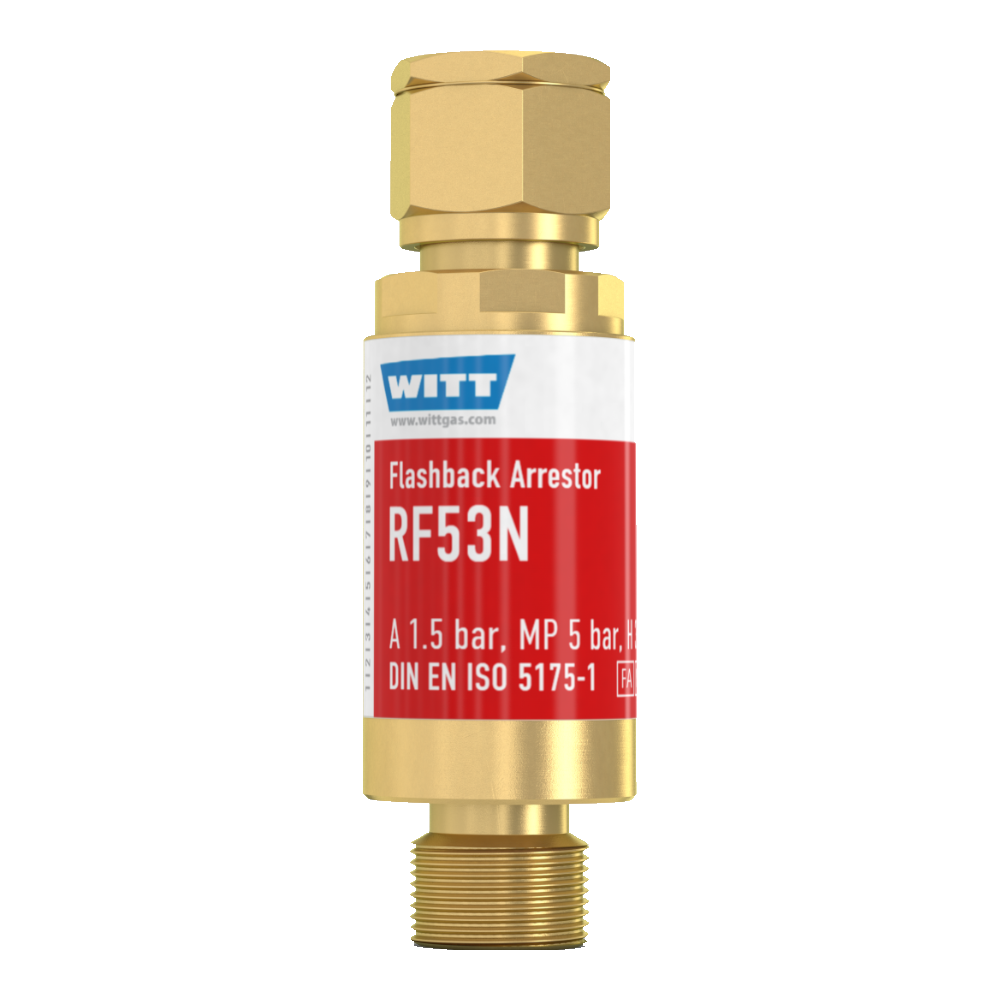

Witt Flashback Arrestor (Gas) RF53N 3/8L

WITT RF Flashback Arrestors – Reliable Protection Against Reverse Gas Flow and Flashbacks

WITT RF Flashback Arrestors provide reliable protection against dangerous reverse gas flow and flashbacks, fully tested in accordance with DIN EN ISO 5175-1. Every unit undergoes 100% quality control to ensure safety.

Why choose WITT RF Flashback Arrestors:

• Stainless steel flame arrestor (FA): Large surface area design stops any dangerous flashback entering the device from any direction.
• Temperature-sensitive cut-off valve (TV): Extinguishes sustained flashbacks well before internal temperatures reach hazardous levels.
• Spring-loaded non-return valve (NV): Prevents slow or sudden reverse gas flow from creating explosive mixtures in the gas supply.
• Inlet filter: Protects the arrestor from contamination, extending its service life.

Operation / Usage:

• Protects gas cylinders and pipeline outlets (hoses and connected equipment) against dangerous flashbacks and reverse gas flow.
• Can be installed in any position or orientation.
• Only one device should be connected per Flashback Arrestor.
• Maximum operating temperature: 60 °C / 140 °F.
• Compatible gases: acetylene, town gas, natural gas, LPG, hydrogen, oxygen, compressed air (other gases available on request).

Maintenance:

• Annual checks are recommended for the non-return valve, body leak-tightness, and flow capacity.
• WITT provides special test equipment on request.
• Service should only be performed by the manufacturer; the inlet filter may be replaced by trained personnel.

Certifications:

• Manufacturer certified to ISO 9001
