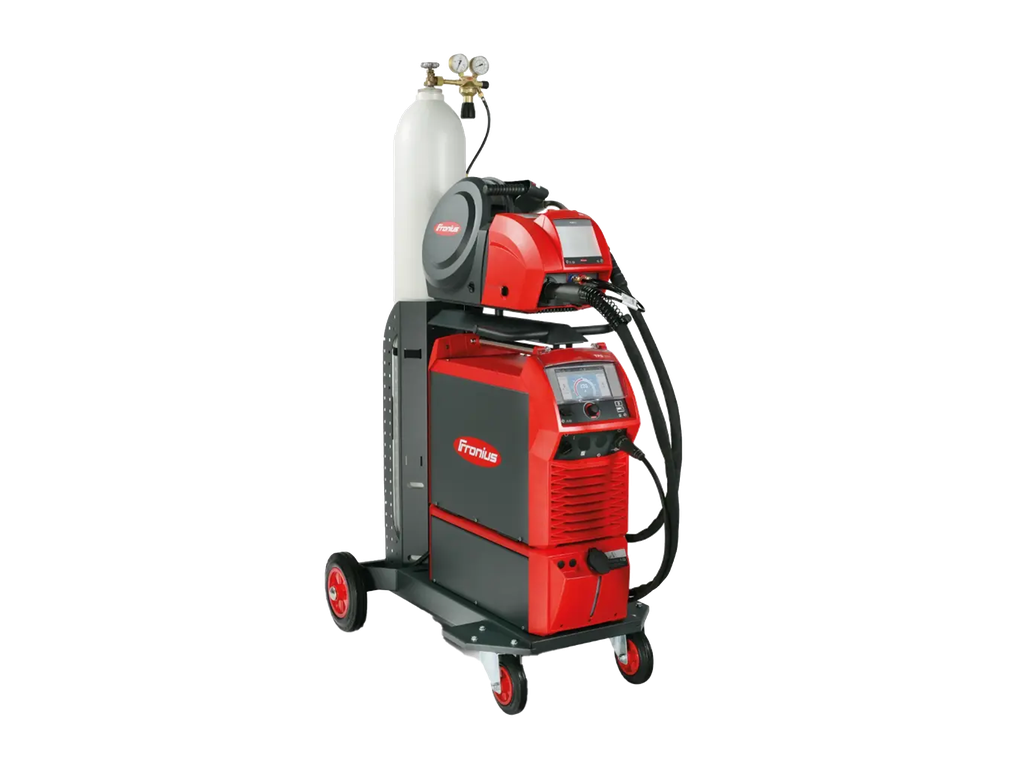

Fronius TPS 320i
- Loose source with wire case
- Touch Screen Control
- Setting parameters graphically and visually
- Visible parameters can be adjusted personally
- For the most common materials
- Standard, Pulse, LSC, PMC, and CMT processes available as options
- Multiple languages adjustable
- 5 easy jobs
Internal Reference:
4,075,230
The TPS/i is a universal genius, completely newly designed and available in power categories of 320, 400, 500, and 600A. As a result, welding results have been significantly improved, communication between man and machine has been optimized, and operation has been refined to perfection. With perfectly matched components, the TPS/i represents the welding system of the future.
SPECIFICATIONS
| Net span (-10% / +15%) | 3 x 400 V 3 x 380 – 460 V (/nc) 3 x 460 – 575 V (/S/nc) 3 x 200 – 460 V (/MV/nc)
|
| Network frequency | 50-60Hz |
| Load flow range | 3 - 320 A |
| Load current / Duty cycle [10min/40°C] | 320A 40% DC 260A 60% DC 220A 100% DC |
| Working voltage MIG/MAG | 14,2 - 30,0 V |
| No load voltage | 71 - 82 V |
| Level of protection | IP23 |
| Length / Width / Height | 687 x 276 x 445 mm |
| Weight | 35,8 kg |
